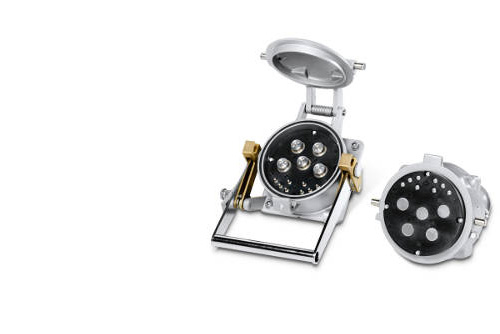

HaKu Gr. 3

This model was developed for particularly high currents or a large number of control lines. The plug is arrested in the socket by means of a coupling clip. A safety lock provides protection against unintended disconnection of the plug. It can be equipped with up to 111 contacts. For example as an alternating current coupling with 5 contacts (500 A, AC440 V) and a further 8 control contacts (25 A, DC72 V).

This model can be equipped individually according to the customer‘s wishes and requirements. Individual colouring is available on request.

Technical data:



Number of poles:

1 - 111

Contact connection:

Crimp/ screwed

Electrical data:

Rated voltage: up to 3000 V
Rated current: up to 500 A

Safety lock

Yes

type of protection (EN 60529):

IP67 coupled

Materials:

Plug housing: cast aluminium
Socket housing: cast aluminium
Contacts: copper or brass alloy

Temperature range:

-30 °C to +90 °C

Weights:

Plug (without cable): approx. 7000 g
Connection socket: approx. 5700 g
