HaKu Gr. 1

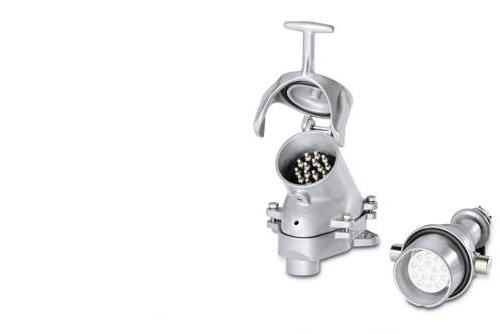

The manual connector size 1 can be used as a control current and three-phase current coupling. The plug is arrested by means of the socket cap. These manual connectors can be supplied, for example, as follows:
· 15 control current contacts (25 A, 110 V)
· 2 three-phase current contacts (200 A, 400 V)
This model can be equipped individually according to the customer‘s wishes and requirements. Individual colouring is available on request.

Technical data:



Number of poles:

1 - 15

Contact connection:

Crimp/ screwed

Electrical data:

Rated voltage: up to 400 V
Rated current: up to 200 A

Safety lock

-

type of protection (EN 60529):

IP56 coupled

Materials:

Plug housing: cast aluminium
Socket housing: cast aluminium
Contacts: copper or brass alloy

Temperature range:

-30 °C to +90 °C

Weights:

Plug (without cable): approx. 1500 g
Connection socket: approx. 2000 g
