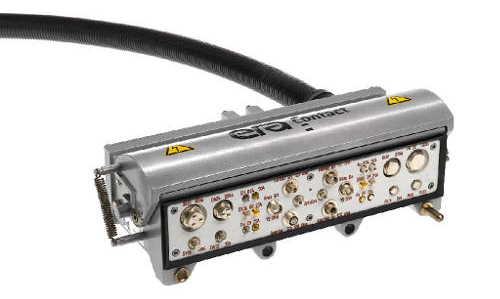

ERA 3:

The era3 can be used on top and underneath. With its outer dimensions it is the optimum size to integrate not just control contacts but also data contacts. This means that it is perfectly equipped to meet almost all requirements. The contact equipment is generally customer-specific and can, in principle, be put together from our entire contract program. The connection line to the vehicle is made up of individual conductors and is led through a protective tube (hand plug optional). The coupling corresponds to the usual railway standards in terms of mechanical, electrical, safety, environmental and fire protection requirements.



Technical specifications:



Application:

underneath or on top (1-part)

Configuration:

max. 2x129 contacts K08

Connection line:

individual strands in a protective tube (hand plug optional)

Thermostat:

4°C falling ON; 14°C rising OFF (standard), diverse voltages

Heating (optional):

interior heating (prevention of condensation), contact carrier heating, special heating

IP protection class:

54 uncoupled, 55 coupled (optional: 56 coupled)

Material:

housing / lid: cast aluminium
cap: aluminium or steel

Temperature range Environment:

-25°C to +50°C (standard)
-40°C or -50°C to +50°C (optional)

Temperature range
Operation:

-25°C to +80°C (standard)
-40°C or -50°C to +80°C (optional)
