era-contact GmbH

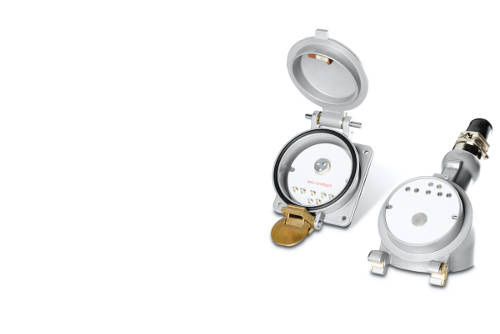

HaKu Gr. 2

This model can be used as a control current and/or three-phase current coupling. A safety lock provides protection against unintended disconnection of the plug. Depending on the requirements, 1 to 44 contacts can be integrated. For example, 3 three-phase current contacts (200 A, 380 V) or 2 three-phase current contacts (100 A, 200 V) and a further 9 control contacts in combination.

This model can be equipped individually according to the customer‘s wishes and requirements. Individual colouring is available on request.

Technical data:



Number of poles:

1 - 44

Contact connection:

Crimp/ screwed

Electrical data:

Rated voltage: up to 1500 V
Rated current: up to 500 A

Safety lock

Yes

type of protection (EN 60529):

IP54 coupled

Materials:

Plug housing: cast aluminium
Socket housing: cast aluminium
Contacts: copper or brass alloy

Temperature range:

-30 °C to +90 °C

Weights:

Plug (without cable): approx. 2600 g
Connection socket: approx. 3300 g
