era-contact GmbH

HaKu Gr. 0

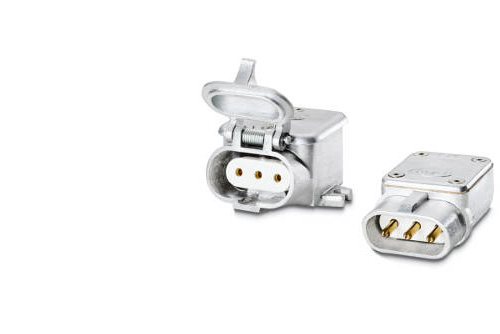

The 2 or 3-pole connector is used for filling level monitoring, e.g. for diesel-powered vehicles or diesel locomotives or for locomotive lighting. Socket and plug can be equipped with pin or bush contacts depending on the application case. Individual colouring is available on request.

Technical data:



Number of poles:

2 - 3

Contact connection:

screwed

Electrical data:

Rated voltage: up to 42 V DC
Rated current: up to 10 A

Safety lock

-

type of protection (EN 60529):

IP54 coupled

Materials:

Plug housing: cast aluminium
Socket housing: cast aluminium
Contacts: copper or brass alloy

Temperature range:

-30 °C to +90 °C

Weights:

Plug (without cable): approx. 300 g
Connection socket: approx. 700 g
