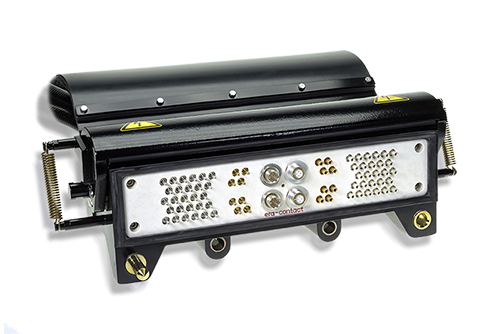

ERA 4:

The era4 is a compact coupling that can be used on top and underneath. The contact equipment is generally customer-specific and can, in principle, be put together from our entire contract program. The connection line to the vehicle is made up of individual conductors and is led through a protective tube (hand plug optional). The coupling corresponds to the usual railway standards in terms of mechanical, electrical, safety, environmental and fire protection requirements.






Technical specifications:



Application:

underneath or on top (1-part)

Configuration:

max. 2x76 contacts K08

Connection line:

individual strands in a protective tube (hand plug optional)

Thermostat:

4°C falling ON; 14°C rising OFF (standard), diverse voltages

Heating (optional):

interior heating (prevention of condensation), contact carrier heating, special heating

IP protection class:

54 uncoupled, 55 coupled (optional: 56 coupled)

Material:

housing / lid: cast aluminium
cap: aluminium or steel

Temperature range Environment:

-25°C to +50°C (standard)
-40°C or -50°C to +50°C (optional)

Temperature range
Operation:

-25°C to +80°C (standard)
-40°C or -50°C to +80°C (optional)
